Handle fire signal butterfly valve (clip type)

Handle fire signal butterfly valve (clip type)

product manual

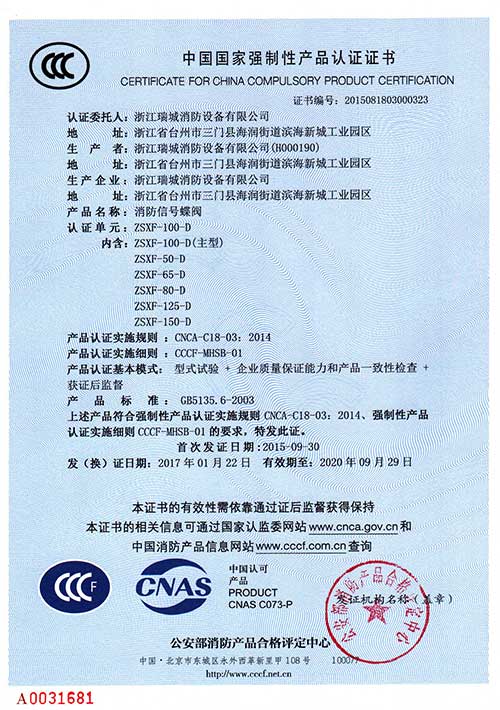

CCC certificate

Inspection Report

1.Description

ZSXF signal butterfly valve is one of the accessory accessories in the automatic sprinkler system. As the water source handling control valve of the automatic sprinkler system, it has a valve position display signal, which can be connected to the control center for real-time monitoring, so as to avoid false alarm and improve. System reliability. It is the control valve for the fire water supply and drainage pipeline.

Product standard: GB5135.6 "Automatic sprinkler system Part 6: General purpose valve"

Design Specification: GB50084 "Design Specification for Automatic Sprinkler System"

Acceptance specification: GB50261 "Code for construction and acceptance of automatic sprinkler system"



2. Main technical parameters:

(1) Working medium: water, oil, gas

(2) Maximum working pressure: 1.2MPa

(3) Test pressure: 2.4MPa

(4) Adapt to the ambient temperature: 4 ° C ~ 70 ° C

(5) Operation mode: handle open type

(6) Switching capacity: DC24V 0.5A; AC220V 1A

(7) Connection method: clip connection

(8) Electrical connection: common line - red; normally open contact - blue; normally closed contact - black



3.model specifications and dimensions

Model

Nominal diameter

D(mm)

d(mm)

H(mm)

B(mm)

L(mm)

H1(mm)

L1(mm)

ZSXF-50-D

DN50

Φ125

Φ145

255

46

150

238

252

ZSXF-65-D

DN65

Φ145

Φ145

300

50

150

250

252

ZSXF-80-D

DN80

Φ160

Φ145

305

50

150

274

252

ZSXF-100-D

DN100

Φ180

Φ145

320

56

150

304

252

ZSXF-125-D

DN125

Φ210

Φ145

370

58

150

333

252

ZSXF-150-D

DN150

Φ240

Φ145

400

59

150

360

252

ZSXF-200-D

DN200

Φ295

Φ280

465

64

200

/

/
